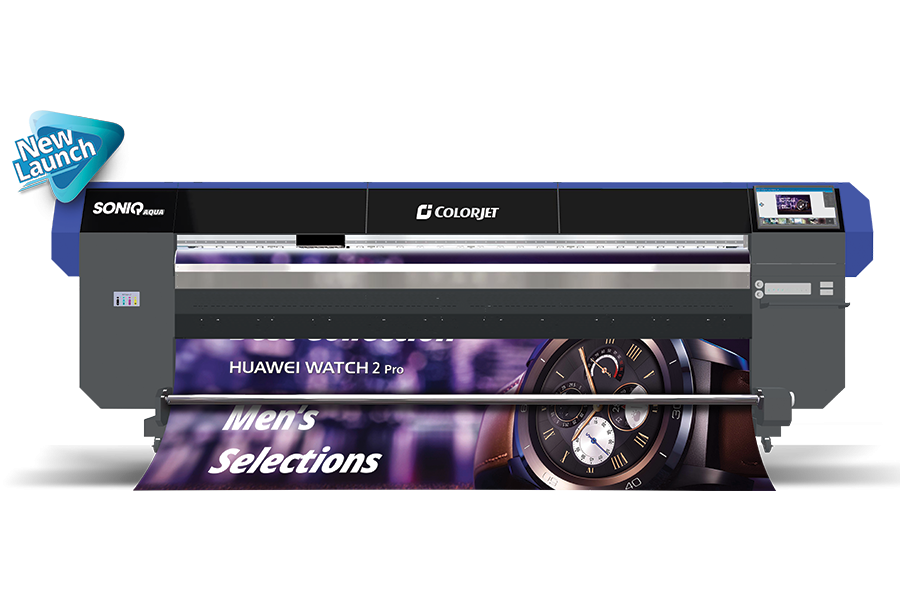

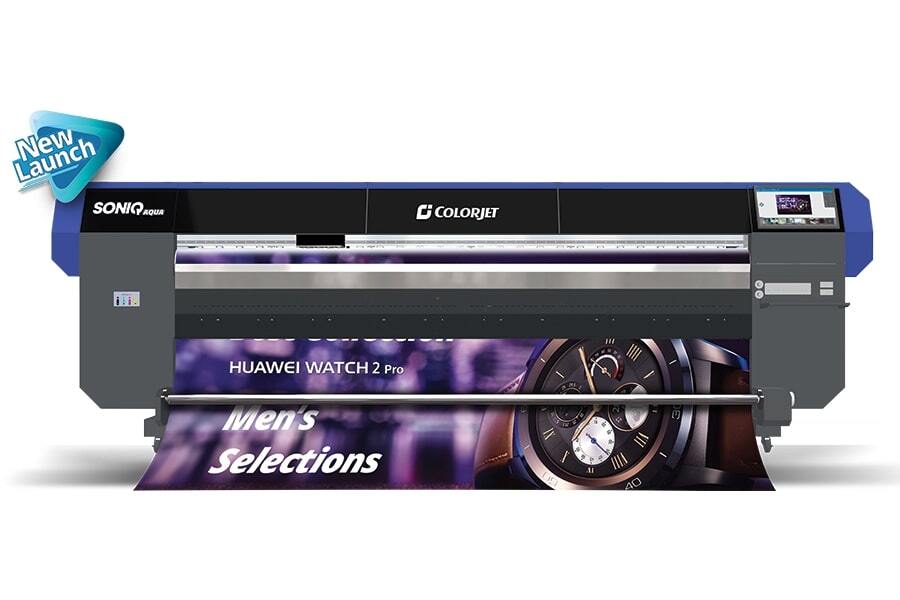

Colorjet Soniq Aqua Solvent Printing machine

Name: Colorjet Soniq Aqua Solvent Printing machine
Brand: INDIAN POWER CONTROL
Price: 1000000 INR
Availability: InStock

Price 1000000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

About Colorjet Soniq Aqua Solvent Printing machine

Introducing the SoniQ Aqua, a game-changing 3.2-meter HQ Solvent Printer engineered to redefine the standards in both indoor and outdoor signage production.
With 4/8 high-speed KM heads, it offers unmatched upgradability, ensuring future-proof performance. Delivering stunning quality at 2130 sqft. /hr (8 Heads), it's perfect for indoor and outdoor needs.

SONIQ AUQA
Model			SC4428		SC8428
Printing Technology			Drop-on-demand, Piezo electric inkjet
Print Heads			Konica Minolta Aqua
No. of Print Heads			4		8
Media		Width	3300 mm (129 in.)
		Thickness	Maximum 3.0 mm (120 mil )with liner (flexible)
		Roll Outer Diameter	Maximum 300mm (12inch), 50.8 (2 in)
		Roll Weight	Maximum 90 kgs
		Core Diameter	76.2mm (3 inch)
		Types	SAV, PAV Banner, Backlite Film, Window Film, Fabric (Solvent Base)
Printing Width			Maximum 3200mm (126 inch.)
Inks		Types	Solvent/Mild Solvent inks
		Color	4 Colors (CMYK)
Printing Resolution (dots per inch)			Maximum up to 1440 dpi
Distance Accuracy			Error of less than ±0.3 % of distance travelled, or ±0.3 mm, whichever is greater
Media Heating System			Pre-heater and post-heater, setting range for the preset temprature: 30 to 60„. Dryer setting range for the preset temperature : 30 to 60„
Connectivity			High speed USB 3.0 or more
Power Requirements (Peak)			AC 220 V ±10%, 20 A, 50/60 Hz
Dimensions ( Printer only)			4689mm X 1079mm X 1571mm(WxLxH)
RIP Software			ColorJet Edition RIP
Weight			Net Weight : 550 KG, Gross Weight : 742 KG
Environmental	Power ON		Temperature: 18 to 28„ Humidity: 20 to 40%RH (non-condensing)
	Power OFF		Temperature: 5 to 40„ Humidity: 20 to 80%RH (non-condensing)
Speed (In Sq. Meter/Hrs)		Print DPI	Passes	Sq Mtrs/Hr (4 Heads)	Sq Feet/Hr (8 Heads)
Mode 1		540x720	2	1050	2130
Mode 2		540x1080	3	700	1410
Mode 3		540x1440	4	525	1050
Mode 4		540x1080	6	350	700
Mode 5		540x1440	8	260	500
